π οΈ Draft with precision, design with confidence!

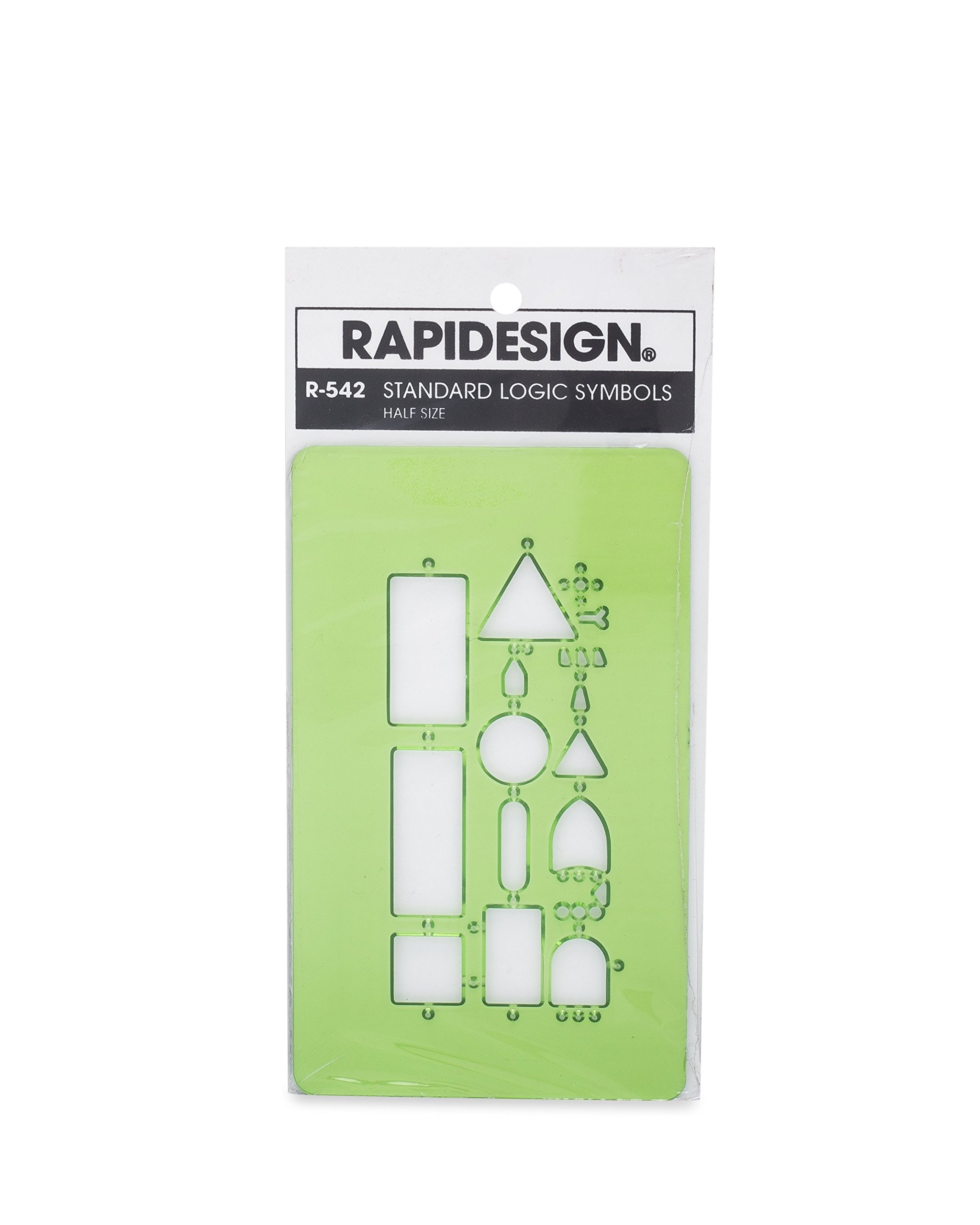

The Rapidesign Standard Logic Symbol Template (R542) is a durable, translucent green plastic stencil featuring 1/2 inch logic symbols designed to meet MIL-STD-806 and ANSI Y32.14 standards. Its beveled cut-outs facilitate clean inking, making it an essential tool for architects, engineers, and designers seeking precision and reliability. Compact and lightweight, this USA-made template is perfect for professional digital processing and drafting needs.
| Manufacturer | Chartpak Inc. |
| Brand | RAPIDESIGN |
| Item Weight | 0.8 ounces |
| Product Dimensions | 5 x 3 x 0.03 inches |
| Item model number | R542 |
| Material Type | Plastic |
| Number of Items | 1 |
| Manufacturer Part Number | R542 |
