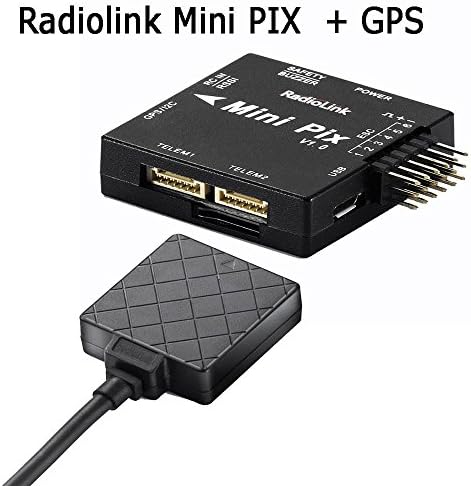

Radiolink Pixhawk Mini PIX Flight Control M8N SE100 GPS Vibration Damping by Software Atitude Hold for RC Racer Drone Multicopter Quadcopter (Mini PIX with GPS)
Description
- Excellent Performance:The pre-LNA low loss circuit design that exact match the ceramic antenna have enhances the ability to capture extremely weak signals even though interference by ideal filter. Optimized circuit layout make sure TS100 can seizing very weak signals and effective suppression of input interference at the same time
- Worry-free Practice:Pilots can practice with Super Simple Modes when TS100 work with Radiolink mini flight controller MINI PIX. Best choice for racing drone beginner.
- Definition of Wire :White wire-RX; Blue wire-TX; Red wire-VCC; Black wire-GND; Green wire-SCL; Yellow wire-SDA
- Top Configuration: GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel, is much better than single GNSS 7N. Geomagnetic: QMC5883L which with same technology as HMC5983 from Honeywell
- Antenna : 2.5dbI high gain and selectivity ceramic antenna Double Filter: SAWF(Surface acoustic wave filter) form Murata
Parameter 1) Positional Accuracy: 50 centimeter precision when working with concurrent GNSS. 2) Velocity precision: 0.1m/s 3) Max height: 50000m 4) Max speed: 515m/s 5) Max acceleration: 4G 6) Max update rate: up to 10Hz 7) Sensitivity Tracking & Nav.: -167dBm; Reacquisition:-163dBm; Cold start:-151dBm; Hot start:-159dBm. Time to first fix: Cold start: 26s, Hot start: 1s. 8) 9) Connect ports Power supply: voltage 5VDC+-5%, current 50~55mA 10) Ports A.GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K B.Geomagnetic I2C interface Package included 1xMini PIX 1xTS100 GPS1xReciever and Rssi Connector 1xBuzzer Safety Switch +1xBuzzer Safety Switch Connecting1xDouble Sided Stick1xFilm Moduel1xPower module Connection
