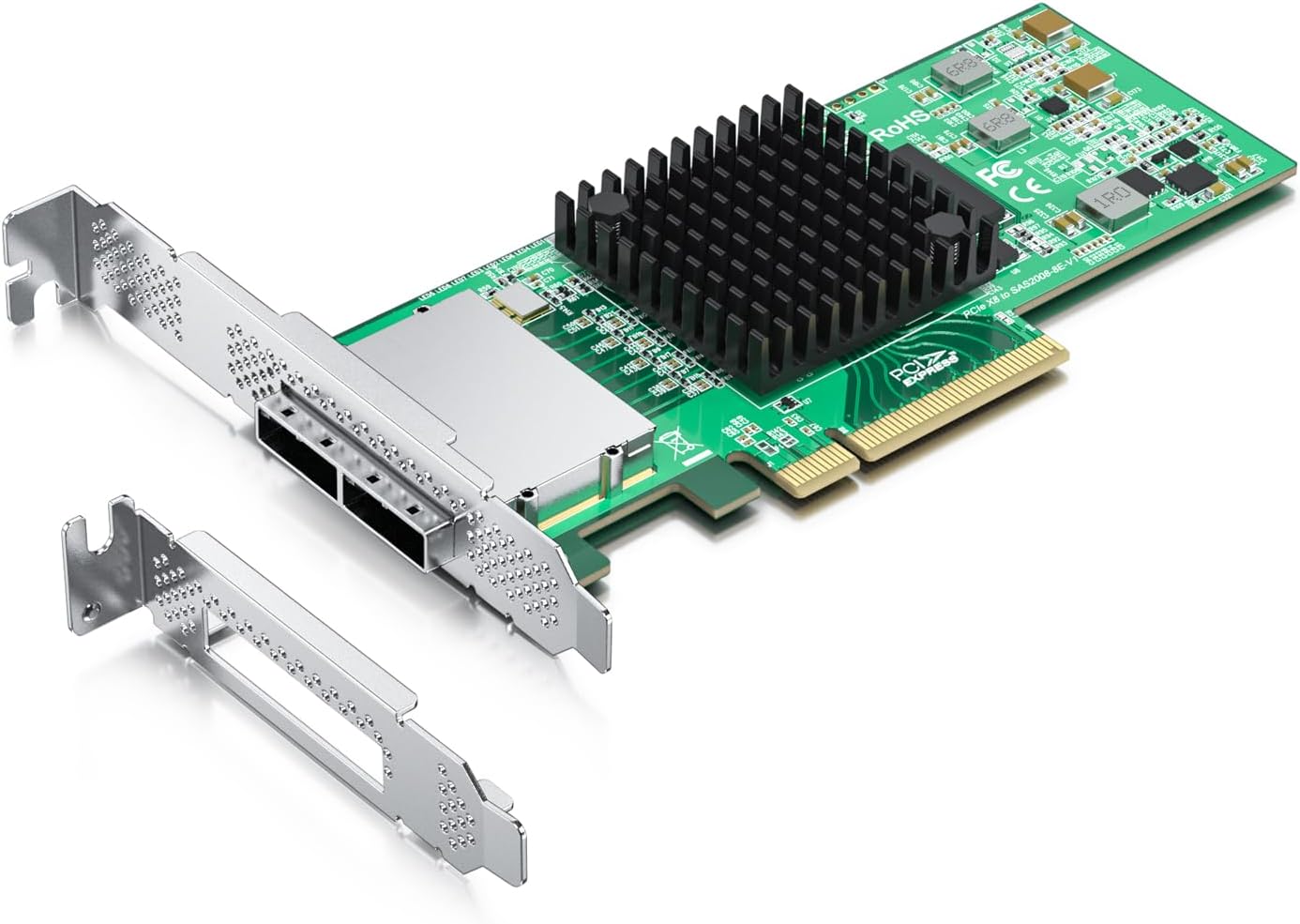

10Gtek External PCI Express SAS/SATA HBA, SAS2008 Chip, X8, 6Gb/s, Same as 9200-8E

Works perfectly. No need to to replace the BIOS even if you do not want RAID functionality. The production quality is very high, too. I was amazed. I use it with 12 year old motherboard with Intel Core 2 (Sandybridge) CPU. it works well. Works out of the box on Arch Linux. No need any driver

Installed the "10Gtek Internal PCI Express SAS/SATA HBA RAID Controller Card, LSI SAS2008 Chip, 8-Port 6Gb/s, Same as LSI 9211-8I" earlier today in my Debian server for use in JBOD mode with ZFS, to replace a couple of cheap 4-port SATA controllers. I was initially worried that I would need to jump through some firmware upgrade hoops to avoid the on-board RAID functionality, but it worked fine out of the box - I installed the card, attached 8 SATA drives (mostly WD Red 4TBs) and they all showed to Debian as individual drives as I desired. I've only been using this card a few hours, so can't report on long-term reliabilty, but initial impressions are good. A "zpool scrub" is reporting 1.4GB/s for my pool of 14 drives (7 mirrored pairs). 8 drives are on this card, 5 are on the motherboard's 6-port SATA controller and one (due to my case being full) is in an external USB-3/UASP enclosure. Installing "sas2ircu", it's showing IR firmware v18.0.0.0.

Fast and professionally packed and questions answered

Whilst it is not the most modern HBA there are newer in the LSI family, I had and older motherboard so needed something a bit older. This works perfectly well with FreeNAS I did not have to muck around reflashing it in to IT mode. It simply worked out of the box. The card is not the shortest card and with the connectors on the rear face you do have to make sure that you have enough unobstructed space behind the card. The heat sink on the card is not ridiculously large so it will all fit in the width of a single slot but I would advise good airflow to prevent overheating.

This is an LSI 9211-8I made by Avago Technologies (Singapore) owned by Broadcom in the US. Arrived with with firmware FW Revision 20.00.07.00-IR. If you intend to use it in a TRUENAS or UNRAID server, then you need to erase the firmware on it, before flashing an IT version of the firmware onto it, so that the disks pass through without the card's bios trying to inflict its h/w raid on your disks. You can use Rufus to make a freedos bootable disk. My EFI mainboard didn't like DOS and complained with a "Failed to initialise PAL", so you either need to find an old motherboard (before EFI) or run an EFI shell and the EFI flash utility instead). Only 3 files are needed though - just google it - 2118it.bin, mptsas2.rom and the flash utility sas2flash.exe according to whether it is DOS or EFI you will use. It flashes both controllers on the board, so all is good. This card runs very hot (as it meant for an air cooled enterprise server), so a small fan might be required if you are running it on a home server. Don't forget to buy 2x 4-way SAS to SATA forward connectors if you intend to run 8 disks off this.

Repurposed an old X79 PC as a storage & VM server running Arch ( linux ), needed SATA 3. This card worked out of the box, six Seagate Ironwolf drives attached, zfs read speeds fast enough to saturate a 10Gbit connection ( and sufficient to use it as a Steam game library, actually - access times are obviously dire compared to local drives but for games that read most things in one go, it's great ). I can't remember if it was just plug & play or I had to install a driver ( I believe it's included in the kernel ) but whatever it was was not paintful enough to make me remember. * Don't recommend Ironwolf - they're getting increasingly errorprone just as the warranty expires * Don't get cheap SATA breakout cables. * I haven't felt the need to fiddle with firmware so I have no idea how easy it is to find something compatible - there is a driver package somewhat buried on 10Gtek's site but that appears to be it.

Good product. Does exactly what it says it’ll do.

Bought this with SATA breakout cables because I didn't want to be limited by having drives connected to the mobo, connected it, worked with unraid and my drives immediately. Having never used a SATA controller before I was a bit worried there'd be some troubleshooting and flashing involved, but it worked great out of the box.

Montée avec 4 disques en RAID10. Pas de problèmes et bonnes performances en utilisant le pilote natif inclus dans Windows 11. Le pilote Broadcomm est probablement plus performant, mais ayant un très mauvais retour d'expérience avec les pilotes Broadcomm (crash systématique au démarrage), je reste avec le pilote natif.

Acquistata da utilizzare con Unraid per gestire 8 dischi, installata, collegata e perfettamente funzionante senza dover configurare nulla. Consiglio di abbinare la ventola Noctua NF-A4X20 PWM, dove tramite piccola modifica al supporto (basta prendere 2 viti lunghe e un paio di piccole brugole) è possibile fissarla sopra al dissipatore passivo per dissiparla meglio ed evitare eventuali blocchi durante cicli di lavoro impegnativi. Scheda funzionante a X8, ma eventualmente compatibile anche su corsie a X4 limitando leggermente il trasferimento, ma se utilizzata con dischi meccanici non si nota il "rallentamento".

Inserita in un server HPE DL380 gen10 con sistema operativo VMWare EsxI8u3 per collegarla a una vm truenas, la scheda è stata subito riconosciuta dal virtualizzatore. Attivato il passtough dentro truenas ho subito trovato tutti i dischi collegati. Consigliatissima per utilizzi simili.

Using TrueNAS Core/FreeNAS under ESXi v6.7 with PCIe passthrough. Working exactly as desired. Six 6 TB Hitachi He8 drives in ZFS "striped mirrors". EDIT: Worked for over a year, though only on weekends for backup jobs. I've pushed a lot of data through this card, using iSCSI and SMB. It's been retired (for x16 SAS/SATA ports) but worked like a charm.

Ein sehr guter RAID-Controller für relativ wenig Geld. Ich hatte ihn schon vor fünf Jahren in's Auge gefasst, mich aber für einen anderen Controller entschieden. Im Gegensatz zu diesem hier war es ein mehr oder weniger Software-RAID, während dieser hier einen "echten" Controller hat. Das merkt man, wenn man Sicherungen mit TrueImage Bootmedien machen möchte. Die Alternative hat den RAID-Verband nicht durchgereicht, sondern die HDDs einzeln angezeigt. Erst mit einem auf Windows basierendem Bootmedium mit integriertem Treiber wurde der RAID-Verband als solcher erkannt. Auch konnte Linux (Mint) nichts mit dem Controller anfangen. Und jetzt mit dem Broadcom? Alles bestens!!! Linux erkannte sofort den Controller, installierte den passenden Treiber und das Bootmedium (mit Linux) von TI erkennt sofort den RAID-Verband. Was will man mehr? Klare Empfehlung!! Kleiner Wermutstropfen: für den Anschluss der SATA-Platten an den Controller war noch ein Kabelsatz nötig, der aber bei Amazon vorrätig war.
