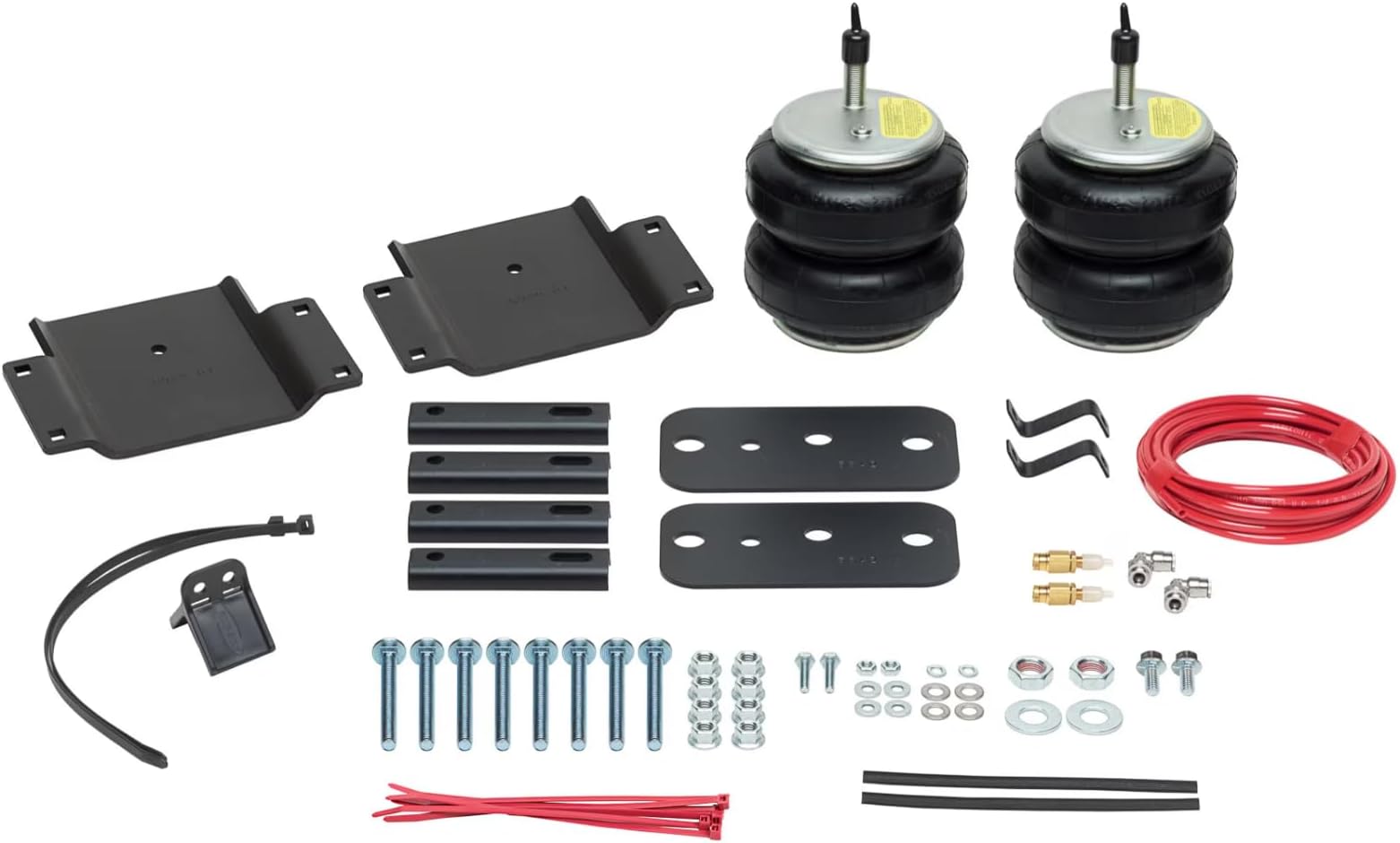

Firestone Airide Ride-Rite Air Suspension Kit with Mounting Assembly fits 2007-2021 Tundra | 100 PSI | 5000 LBS Capacity | No Drill Installation | PN 2445

I installed this Firestone Ride-rite kit on a 2017 Toyota Tundra Crewmax. I have a camper shell on the truck and at the minimum 5psi, it has leveled out the truck perfectly. I also tow both a light, 3100 lb camp trailer and 3000 lb boat. Previously, with either of these attached, the rear end sagged too much. This is what I really bought this kit for. Installation was easy, the instructions are very good to excellent. The parts kit was excellent too, it covered everything I needed. I did deviate from the instructions on one step, the cutting of the rubber bump stops. The rubber is very tough, good Toyota quality, so I loosened the U-bolts holding the axle to the leaf spring pack and removed the bump stops. Toyota recommends buying new U-bolts when these are removed. I chose not to and re-applied locking compound and re-torqued the nuts to 74 ft-lbs. I did have to loosen and bop the U-bolts into place with a dead blow hammer after I didn't get them aligned right the first time. The hardest part of the installation was the alignment of the upper plate and marking the lower plate. With the rear axle on jack stands, jacking the trailer hitch made this a lot easier on the passenger side. I also used a silver sharpie on the black mounting plate, black on black is too hard to see. I mounted the air valves on each side of the license plate lined up horizontally with the trailer connector and with the license plate removed, about 1-5/8 inches left and right from the big hole behind the license plate. Total time for the installation was about 5 hours, 3 for first (drivers) side and 2 for the 2nd.

I can't believe how quick and easy this was to install on my 2015 Tundra Double Cab. It took me about an hour and a half to install with a couple of deep well sockets. I did not remove the rear tires or the spare as recommended and not once during the install did I ever wish I had. Other than the spare getting in my way a time or two as I was sliding out from under the truck I never knew it was there. The instructions recommend cutting the jounce bumpers off with a reciprocating saw, however, I simply loosed the u-bolts holding the rear leaf springs to the axle and I completely removed them. This way I can go back to stock if I ever wanted to (not that I would). I opted to buy a union tee so I only have one fill valve and one hole drilled in the truck. Doing this makes filling them quick and easy but I won't be able to compensate for an uneven load in the bed. Since I bought these for towing a travel trailer that part doesn't concern me. All the parts looked great and feel and appear to be very high quality, I am very happy with my purchase. This kit has greatly improved my towing experience. With my trailer fully loaded I tow around 6500lbs with 700lbs of tongue weight and with about 25lbs of air in the bags my ride is level and smooth with no more hitch bounce. I wanted to update my review to include something important that I left out. In regards to your weight distribution hitch; hitch your trailer up, inflate your airbags to the height you want, THEN adjust and setup the hitch. Not doing this properly can negate some or all of the effects of the weight distribution hitch and while it *looks* like it might be set up right or it might *look* like it's doing its job, its not.....and you could find yourself in a hard braking situation with little to no traction on the front tires. I have also settled on 20 PSI while towing and this is what my hitch is adjusted to. After it's all setup right your hitching process should be as before. Lightly rest the trailer on the ball, lock the hitch in place, put your weight distribution bars on, drop the trailer the rest of the way down onto your hitch, THEN inflate the bags. The first thing you should do when unhitching is deflate the bags.

Installation took me about 4 hours. What you'll need, beyond basic hand tools: Salamander jack (the type that can slip under a vehicle easily) Sawzall Jigsaw Trouble light The jack is handy for access underneath the vehicle. Slip it under the rear differential and you'll have the headroom needed for an easier installation. Use the jack on the frame (side) to increase the space between the leaf spring and the frame for fitment. It helps greatly to remove the spare tire. Spend the few minutes to do this and you'll save yourself a lot of headache. Jigsaw: The top plate that fits between the top of the airbag and the frame wasn't aligned well and needed modification -- more room for the threaded stem on the top of the airbag required. I bought a "Y" splitter to have only one fill valve for both springs. The jury's out on this however, as a buddy questioned the ability of the bags to resist roll of the vehicle through turns. Rather than resisting compression, the bag that is being compressed would simply move air out of it and to the other bag (with the joint fill). We have a trip coming up and we'll just have to see how it goes. Easy enough to remove the splitter and go with an additional valve (included in the kit). Fitment: If you have the right tools, just assemble the air bag and adjust it in place. Get it fitting right and tighten everything in place. The instructions have you marking the bag and removing it; ughh, too much of a pain. I did the left side using the instructions and then did the right by fitting it in place -- much, much easier. A slim 9/16" gearwrench will fit the nut at the bottom of the bag, in place, and you can tighten it that way.

I could not be more pleased. I was really skeptical, but after reading these reviews and watching a bunch of youtube installation videos, I decided to go for it. I'm so glad I did. My 2010 tundra I bought used ND the guy I got it from put a leveling kit on the front end. Once I put my lumber rack and she'll on the back, plus tools, the butt of my truck sagged and was hard to see over the hood. My trailer hitch bottomed out at every dip in the road and it threw of the orientation of my headlights to the degree that everyone thought I was high beaming them. So I bought this kit, installed it with minimal effort. I just jacked up the hitch, put wooden blocks under the bumper, left the spare and the rear tires on, and installed the kit. It took about two hours with only a handful of tools. You do have to drill one small hole to install the shrader air valve, though you could zip tie that on if you wanted. I aired it up and voila! My truck has a a beautiful stance again, feels really stable and has a refreshing air suspension ride. I highly recommend this kit. Some of the best money I've spent on my truck. Unless you plan on carrying uneven loads or get the on board compressor (so far I'm just using my emergency tire inflator that plugs into my cigarette lighter on an extension), I do suggest buying the T air line so you only have one air inlet.

So far, the product is working great, and they were easy to install. The only drawback to these air springs, is that the radial cutout (which should rest solidly on the axle) on the lower bracket does not match up with the axle when the bracket is installed on the axle U-bolts. So, half of the bottom bracket's support is not solidly on the axle. Essentially, there is a gap between most of the radial cutout and the axle. Pictures from the installation of this product on the etrailer site, and another review here on Amazon, confirm this problem across multiple installations. So, the product isn't perfect.

Works great and easy installation

Kit went on easy enough, works as expected and quality is there. I really only have one complaint and it’s me just being picky. The bracket the goes up to frame that the peg of airbag goes through is not thick enough so the peg hits the frame and has slight gap. I ended up taking it all back apart thinking I made an error installing it but after going step by step and double checking and I even looked at a buddies (his same way) I seen it’s just the way the bracket fits. Overall great product and I would buy again, really helped with leveling my truck out on heavy loads. I also made a modification to the setup. I installed air lines into a tee and just ran one line through license plate bracket so when I put air in both bags fill up at exact same pressure. Good setup, good quality and works as expected.

Can NOT say enough good about this kit. I tow a 19ft enclosed aluminum trailer with tandem axles that has been crushing my 2013 Double Cab. Extremely harsh ride because suspension is bottomed on bumpers once trailer is lowered on hitch. This system has transformed the truck. So much cushier ride. Doesn't sag when trailer is attached. Even with 50lbs of air in bags, without trailer, it rides absolutely fine. Easy installation. I didn't cut off the jounce bumpers, I loosened the U bolts and removed the bumpers in case I wanted to go back to stock suspension, which I highly doubt! Oh, had to bend the parking brake brackets with a heavy screwdriver about a quarter of an inch to make kit fit. Also, my kit came with two fuel pump controler brackets. I doubled them up for a sturdier mount of the controler. This kit is the best investment I've made on my truck. Oh, and unless you do off roading? NO NEED for the Daystar cradles. They are only for when the suspension is crazy articulated when off road. No need for these for on road use.

Excellent product and installation instructions. Step by step instructions easy to follow. Has a do and a don’t and walks through troubleshooting. Very happy.

عملي. قوي وينظم ارتفاع السيارة

Good product

Installed on 2014 Tundra Limited Crewmax. Very simple install. Instruction booklet was wrong but quick google search helped. Towed 5000lb trailer next day, held up pretty good. Highly recommend

منتج جيد جدا ولاكن يا ليت يرجع سعرة مثل الفتره الماضية وشكرا
